Explorer Camera System
Trenchless Supply Inc · Explorer
1 / 5Explorer Camera System rental unit
HD 1080P reel-based pipe inspection system. Choose a reel (230 ft or 330 ft) and a camera head.
Rent it on the job. Apply up to 90% of eligible equipment rental charges toward a new unit after your rental closes out.
The Explorer is a full-size reel-based pipe inspection camera system built for mainline and lateral work. It records HD 1080P video, carries a built-in 512 Hz sonde for locating, and accepts three interchangeable camera heads so one system covers everything from 2 in laterals up to large-diameter mainline. The standard configuration ships with 330 ft of 11 mm (0.43 in) push rod on a wheeled reel; a lighter 230 ft of 9 mm (0.35 in) rod is available for tighter access. The control station folds into a hard case with a sunlight-readable monitor, on-screen text/date overlay, and USB recording to thumb drive.
Specifications
- Manufacturer
- Trenchless Supply Inc
- Model
- Explorer
- Pipe range
- 2"–12"
- Working length
- 330 ft
- Dimensions
- 39 x 25 x 41 in (reel and cart assembled)
- Shipping weight
- 121 lb
- Inventory
- Serialized unit
- Minimum rental
- 1 day
- Deposit
- $1,500
- Reel
- Steel frame with pneumatic wheels and brake
- Video
- HD 1080P digital recording to USB
- Weight
- 121 lb (330 ft configuration)
- Monitor
- 10 in sunlight-readable LCD with folding sun shield
- Overlay
- On-screen keyboard for text, date, and footage counter
- Lighting
- Dimmable LED ring on all heads
- Locating
- Built-in 512 Hz sonde transmitter
- Camera head options
- 40 mm (1.57 in) self-leveling, 33 mm (1.3 in) pan and tilt, 50 mm (1.97 in) large pan and tilt
- Push rod (optional)
- 230 ft of 9 mm (0.35 in) fiberglass rod
- Push rod (standard)
- 330 ft of 11 mm (0.43 in) fiberglass rod
What's included
- {"HD control station in hard case","512 Hz transmitter","USB recording","charger and cabling","Selected reel and camera head are added as options"}
Jobsite requirements
- Power
- 110V / 15A single phase, or internal rechargeable battery pack
- Air
- Not required
- Training
- Operator training recommended
Similar units

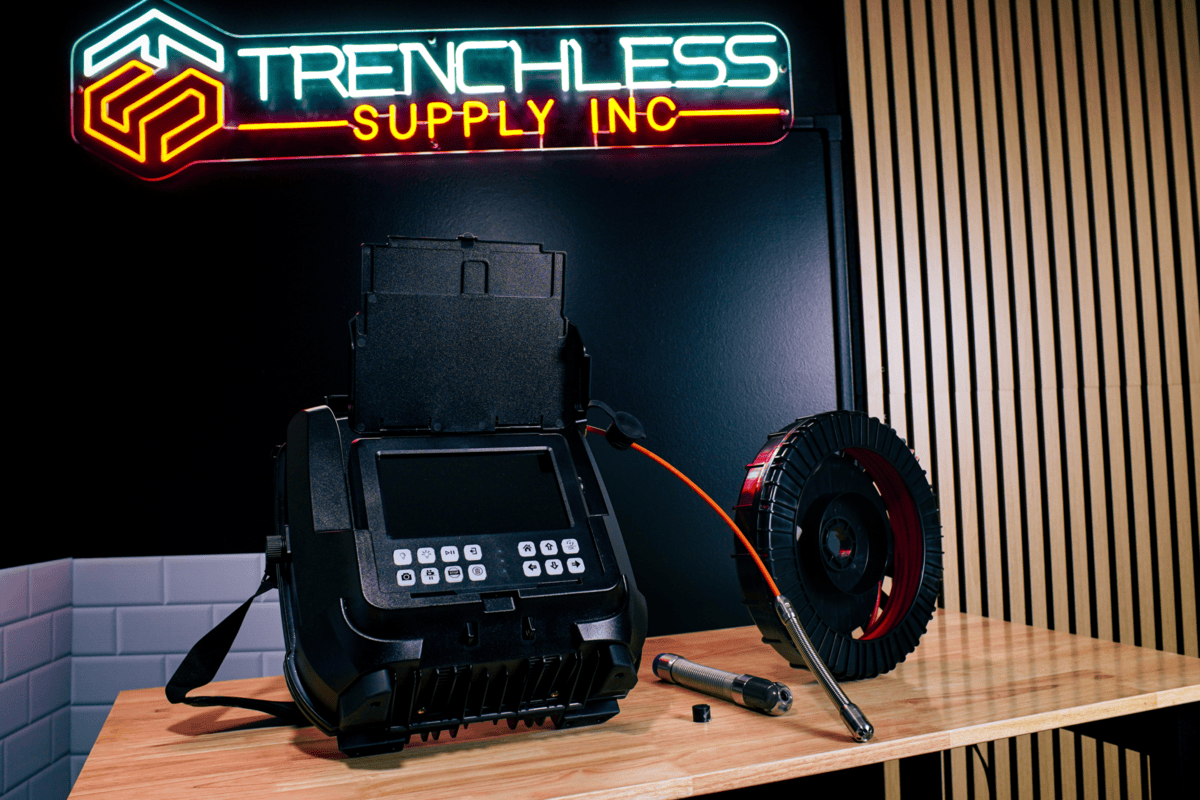

Explorer Compact Camera System
