IMS Drive
IMS · Drive
1 / 2IMS Drive rental unit
Pneumatic main sewer cutting robot for 6 in to 16 in lines with up to 328 ft of reach.
Rent it on the job. Apply up to 90% of eligible equipment rental charges toward a new unit after your rental closes out.
The IMS Drive is a pneumatic cutting robot built for main sewer work in pipes from 6 in to 16 in inside diameter, with entry depths up to 328 ft. Its slim 4.8 in outside diameter carriage enters lined 6 in pipe without trouble. Internal pressure monitoring and a pneumatic pressure bar deliver stability and traction, while the servo-pneumatic cutting arm stroke of roughly 7.9 in keeps the tool on target in changing diameters. The cutting arm rotates 440 degrees under electric drive for fast, repeatable reinstatements and deposit removal. An integrated color camera with LED and supplemental lighting gives the operator constant visual control, and the electric cable reel with boom deflection plus a detachable control box makes setup and teardown quick on any job site.
Specifications
- Manufacturer
- IMS
- Model
- Drive
- Pipe range
- 6"–16"
- Working length
- 328 ft
- Dimensions
- 26.4 x 26.8 x 45.7 in (cable reel)
- Shipping weight
- 401 lb
- Inventory
- Serialized unit
- Minimum rental
- 1 day
- Deposit
- $2,500
What's included
- Self-propelled carriage (4.8 in OD
- 42.1 x 7.5 x 6.9 in)
- cutting arm with air motor
- mobile cable reel with up to 328 ft supply hose and manual brake
- detachable PLC control unit (16.7 x 18.9 x 8.4 in) with HDMI display mount and two multifunction joysticks
Jobsite requirements
- Power
- 110V / 15A single phase
- Air
- 90 PSI at 35 CFM
- Training
- Certified operator training required
Similar units

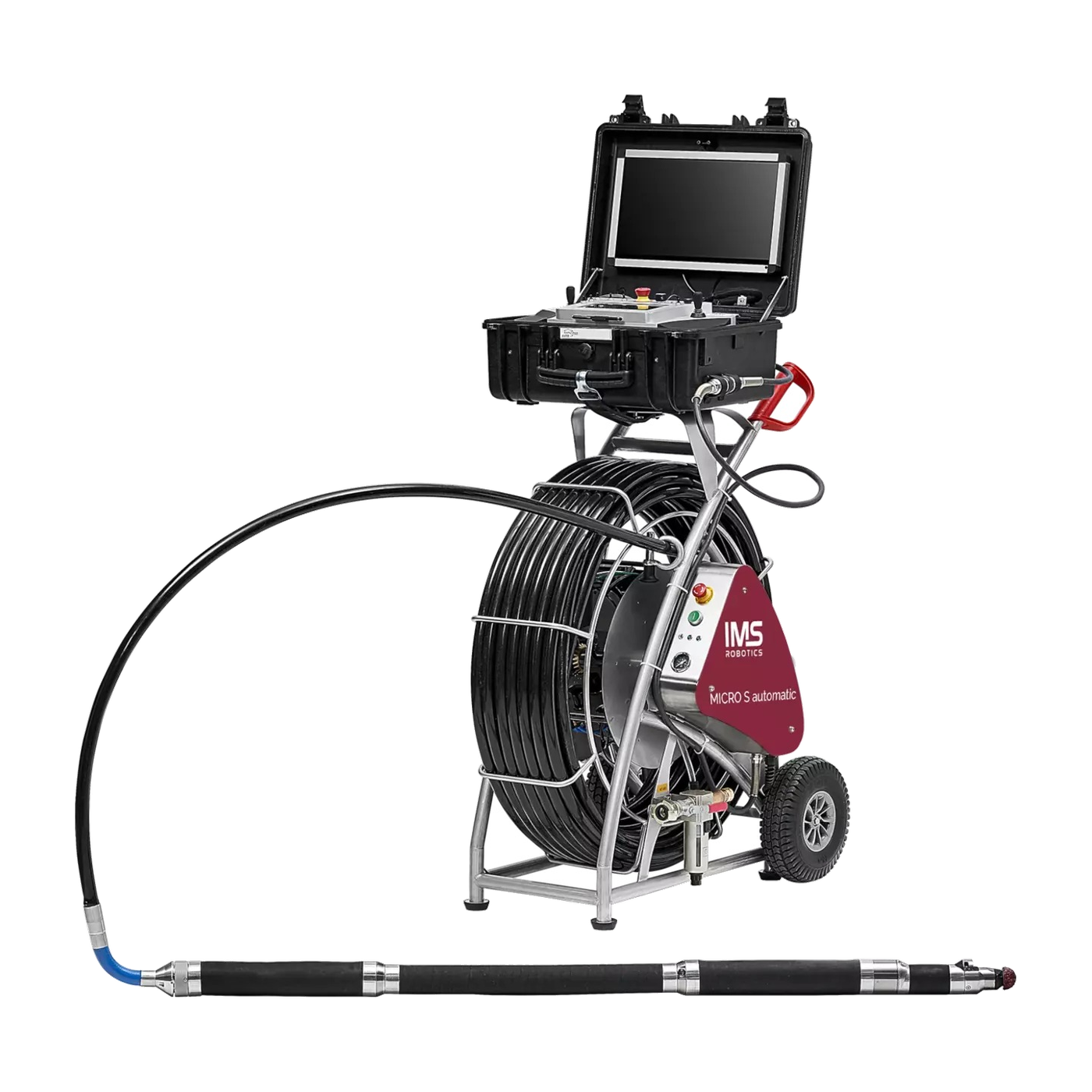

IMS Micro S Automatic
IMS · Micro S Automatic
Automatic lateral cutter with axial creep/climb feed for 3 in to 10 in lines.
3"–10" pipe
Deposit $1,500 · 1-day minimum

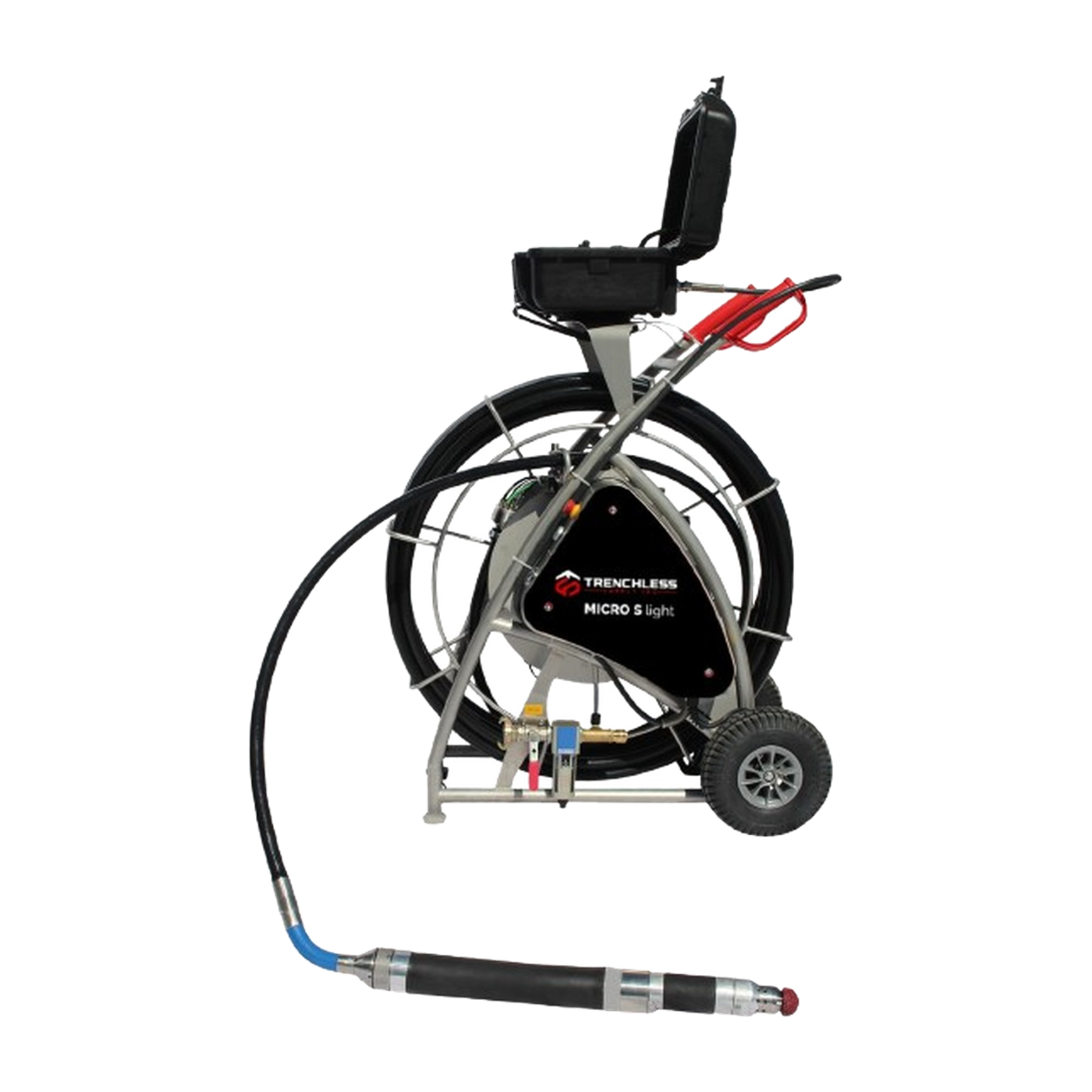

IMS Micro S Light
IMS · Micro S Light
Entry-level air-driven lateral cutter for 3 in to 10 in lines with 90-degree bend capability.
3"–10" pipe
Deposit $1,250 · 1-day minimum

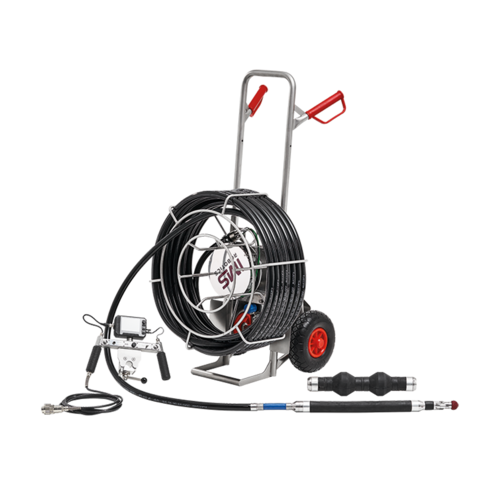

IMS NANOeasy
