IMS Micro S Automatic
IMS · Micro S Automatic
1 / 4IMS Micro S Automatic rental unit
Automatic lateral cutter with axial creep/climb feed for 3 in to 10 in lines.
Rent it on the job. Apply up to 90% of eligible equipment rental charges toward a new unit after your rental closes out.
The IMS MICRO S automatic is the house-connection cutter for perfectionists: proven MICRO series performance with improved bend negotiation and use in even smaller lines, from 3 in to 10 in inside diameter. The powerful cutting motor removes any deposit and reinstates laterals after liner rehabilitation quickly and effectively. Manual or automatic creep and climb functions provide roughly 4 in of axial feed, so the cutter repositions itself at the work location without pulling hose. Two radial bracing bladders hold position, the head swivels roughly 90 degrees with continuous rotation, and a color camera with LED lighting plus permanent air (switchable water) cleaning guarantees exact positioning. 90-degree bend negotiation from 4 in up; expansions to 8 in and 10 in available.
Specifications
- Manufacturer
- IMS
- Model
- Micro S Automatic
- Pipe range
- 3"–10"
- Working length
- 164 ft
- Dimensions
- 33.5 x 20 x 47.2 in (cable reel)
- Shipping weight
- 154 lb
- Inventory
- Serialized unit
- Minimum rental
- 1 day
- Deposit
- $1,500
What's included
- Cutter drive with axial feed
- cable reel with 164 ft supply hose
- removable 2-joystick control in detachable transport case
- mini-PC with video software
- accessory tool case
Jobsite requirements
- Power
- 110V / 15A single phase
- Air
- 90 PSI at 25 CFM
- Training
- Certified operator training required
Similar units

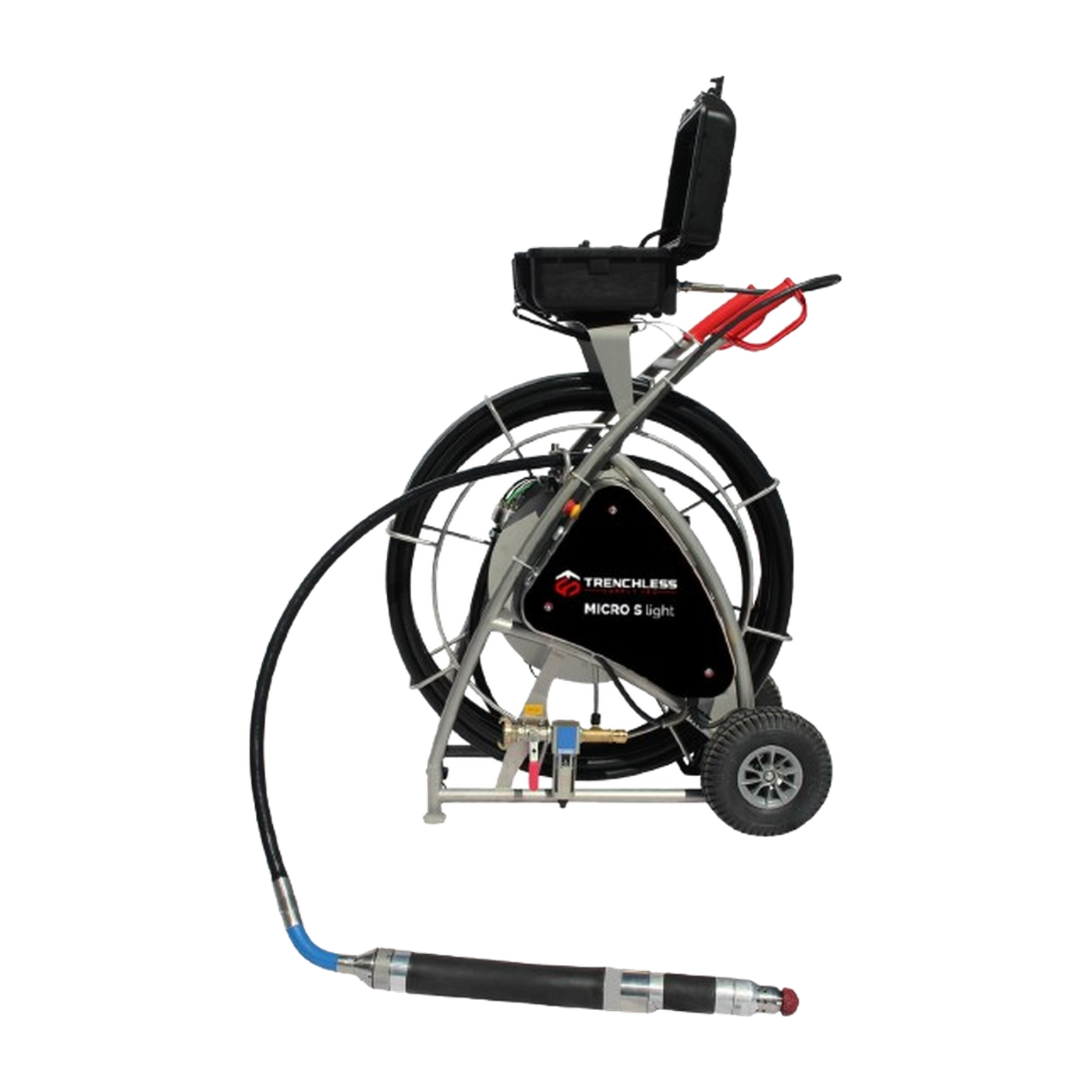

IMS Micro S Light
IMS · Micro S Light
Entry-level air-driven lateral cutter for 3 in to 10 in lines with 90-degree bend capability.
3"–10" pipe
Deposit $1,250 · 1-day minimum

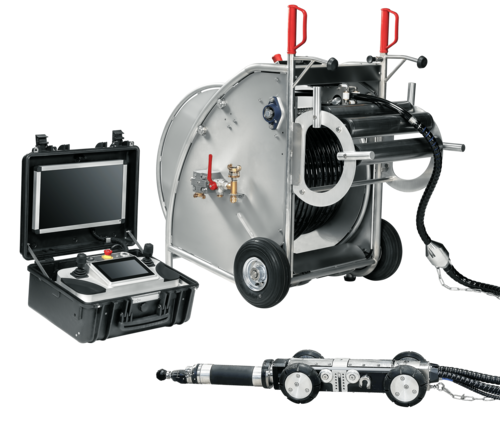

IMS Drive
IMS · Drive
Pneumatic main sewer cutting robot for 6 in to 16 in lines with up to 328 ft of reach.
6"–16" pipe
Deposit $2,500 · 1-day minimum

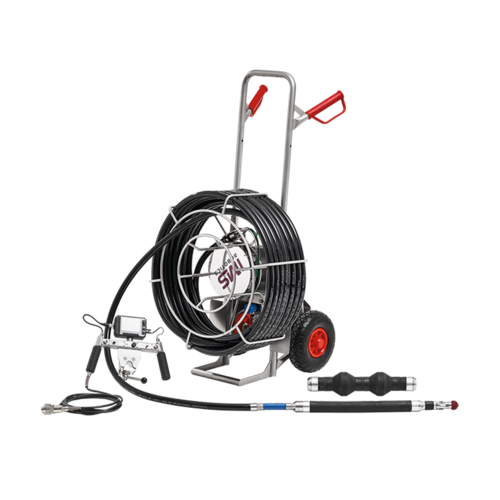

IMS NANOeasy
