IMS Nano E 3"–4" Cutter Arm
IMS · Nano E Arm 3-4
Quick-swap Nano E milling arm for 3" to 4" (DN 70–100) house connections.
Rent it on the job. Apply up to 90% of eligible equipment rental charges toward a new unit after your rental closes out.
The 3"–4" cutter arm is the standard Nano E milling arm for small-diameter house connections. Built for the Nano E chassis, it keeps the robot's outstanding bend capability from DN 75 — including 90° bends, even in the liner — while the rotary drive and axial feed reinstate laterals and grind protruding taps in 3" to 4" lines. Ships with the arm assembly and mounting hardware; cutter bits and burrs are ordered as consumables. Rent it on its own if you already run a Nano E, or add it as a kit with the machine.
Specifications
- Manufacturer
- IMS
- Model
- Nano E Arm 3-4
- Pipe range
- 3"–4"
- Dimensions
- Case: 24 x 18 x 12 in
- Shipping weight
- 28 lb
- Inventory
- Serialized unit
- Minimum rental
- 1 day
- Deposit
- $450
What's included
- 3"–4" milling arm assembly
- mounting hardware
- transport case.
Jobsite requirements
- Power
- Powered by the Nano E battery or mains supply
- Air
- Nano E air supply for motor cooling and camera cleaning
- Training
- Nano E operator training required (virtual or on-site).
Similar units

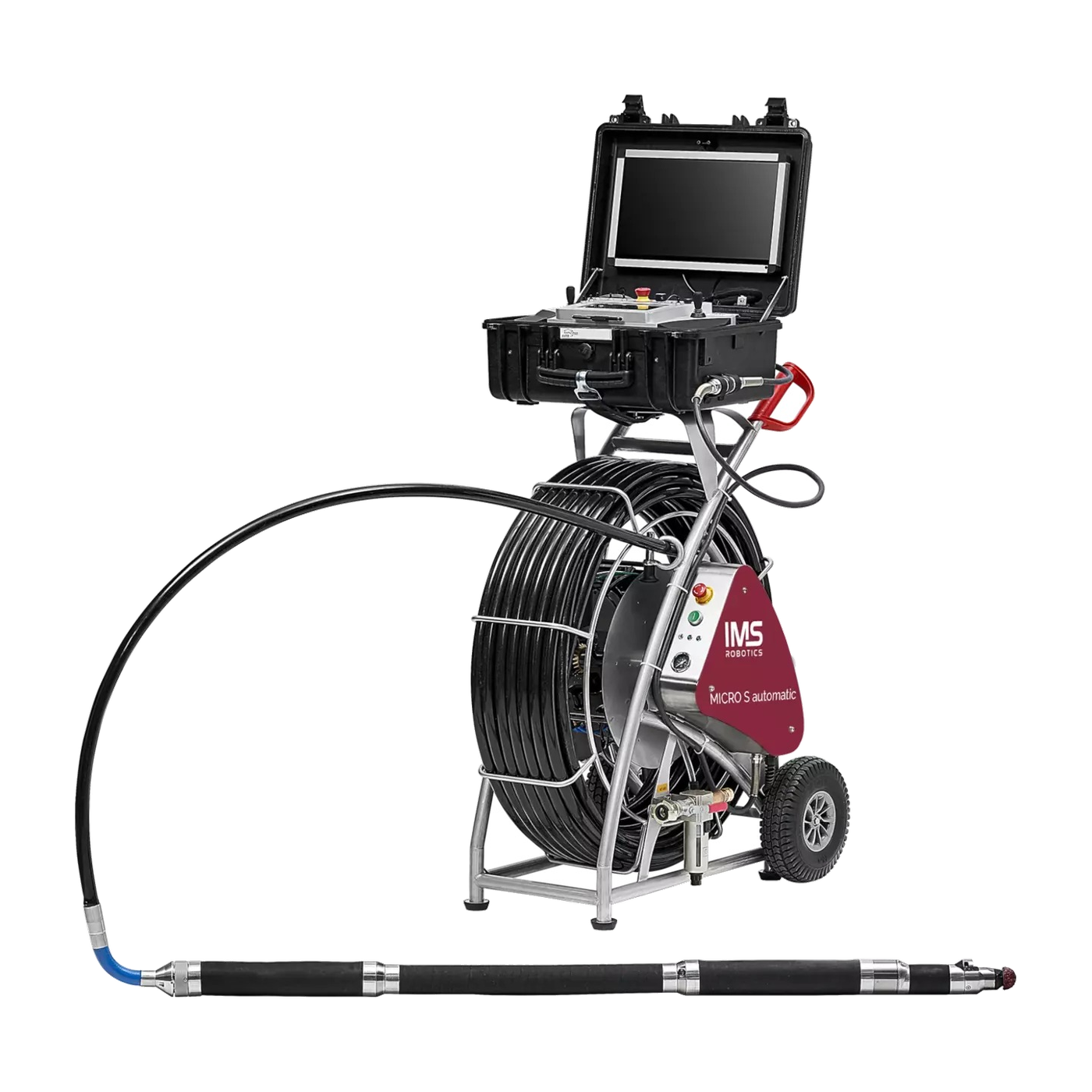

IMS Micro S Automatic
IMS · Micro S Automatic
Automatic lateral cutter with axial creep/climb feed for 3 in to 10 in lines.
3"–10" pipe
Deposit $1,500 · 1-day minimum

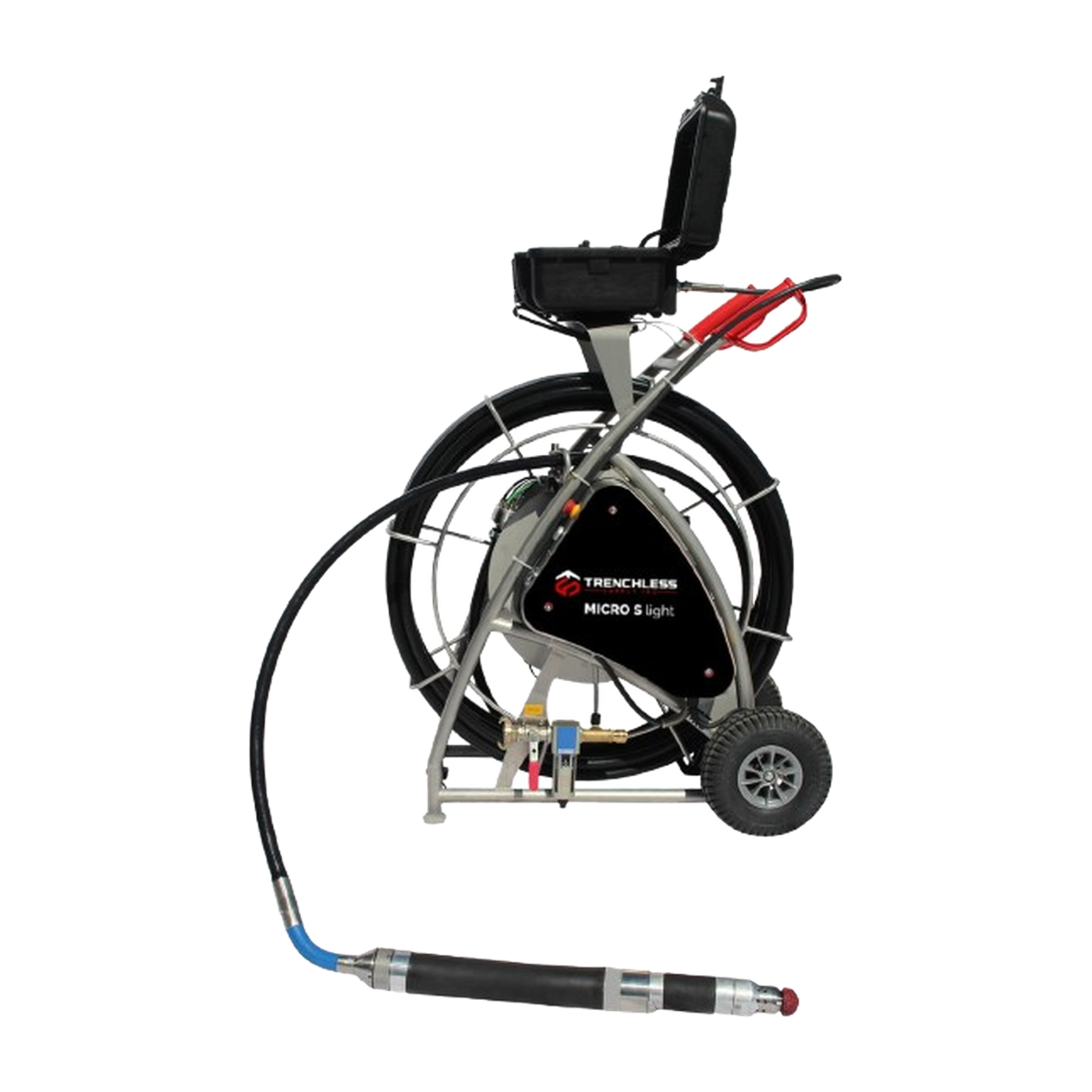

IMS Micro S Light
IMS · Micro S Light
Entry-level air-driven lateral cutter for 3 in to 10 in lines with 90-degree bend capability.
3"–10" pipe
Deposit $1,250 · 1-day minimum

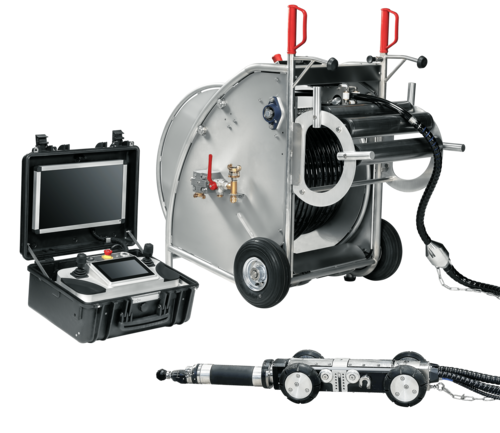

IMS Drive
