Red Inversion Drum Large (RID-LG)
Trenchless Supply Inc · RID-LG-CL
1 / 2Red Inversion Drum Large (RID-LG) rental unit
High-capacity 174 lb drum for long shots up to 330 ft of 4" liner.
Rent it on the job. Apply up to 90% of eligible equipment rental charges toward a new unit after your rental closes out.
The **Red Inversion Drum Large** is the next step up from our Medium model, built for longer liner shots and demanding commercial and industrial CIPP applications.
The Large model provides consistent air inversion control while maintaining the visibility and ease of operation contractors rely on. Its large inspection window allows operators to clearly monitor liner movement during inversion, and the secure, easy-locking window system provides a tight seal while allowing fast access when needed.
Built with heavy-duty stainless steel construction and mounted on a stable, maneuverable frame, it delivers both strength and jobsite mobility.
**Main features**
- **Stainless steel build** for long-term durability. - **Inspection window** to monitor liner inversion in real time. - **Pressure regulation valve** for controlled liner deployment. - **Ergonomic drum rotation system** for even inversion. - **Multiple nozzle sizes available** supporting 2" to 8" liners. - **Compatible with ambient, hot water, steam and UV curing.**
Specifications
- Manufacturer
- Trenchless Supply Inc
- Model
- RID-LG-CL
- Pipe range
- 2"–8"
- Working length
- 400 ft
- Dimensions
- 60 x 44 x 46 in
- Shipping weight
- 174 lb
- Inventory
- Serialized unit
- Minimum rental
- 2 days
- Deposit
- Sign in to view
- Nozzle
- Camlock or Storz 6"
- Weight
- 174 lb
- Material
- Aluminum, Stainless Steel
- Liner Range
- 2" - 8"
- Drum Capacity
- Approx. 330 ft of 4"
- Tank Pressure
- Max. 22 PSI
- Curing Methods
- Ambient, Steam, Hot Water, Ultraviolet (UV)
- Air Consumption
- Min. 8 CFM
What's included
- Drum with inspection window
- pressure regulation valve
- Camlock or 6" Storz nozzle
- hoses and fittings
Jobsite requirements
- Power
- Air powered
- Air
- Min. 8 CFM shop air; max tank pressure 22 PSI
- Training
- Certified CIPP training required
Similar units

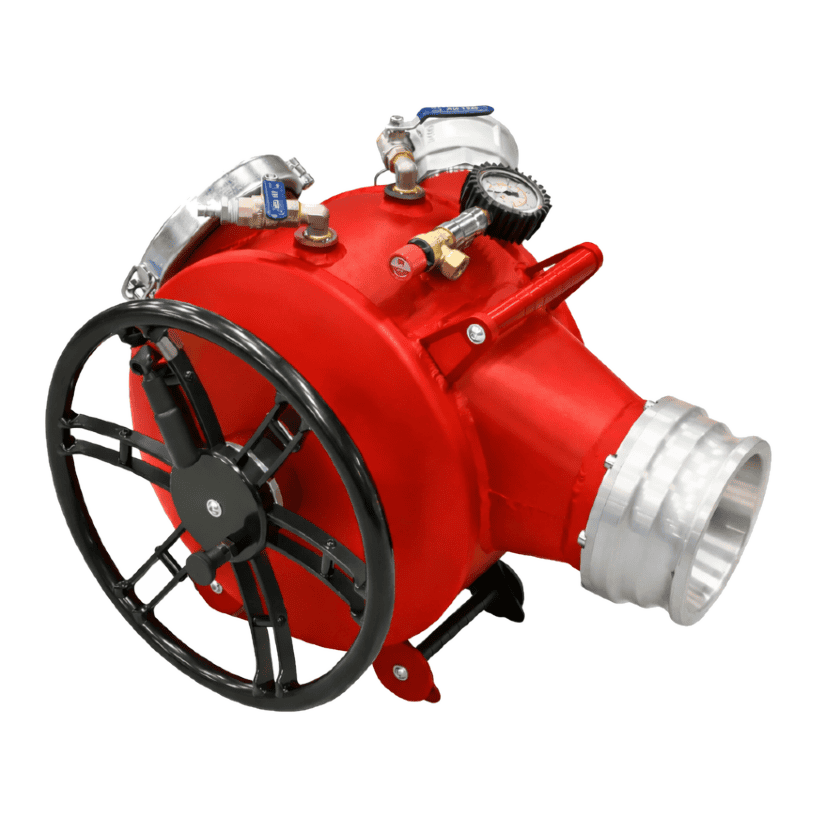

Red Inversion Drum Small (RID-SM)
Trenchless Supply Inc · RID-SM-CL
Lightweight 46 lb inversion drum for 2"-6" liners in tight-access installs.
2"–6" pipe
Deposit $1,000 · 1-day minimum

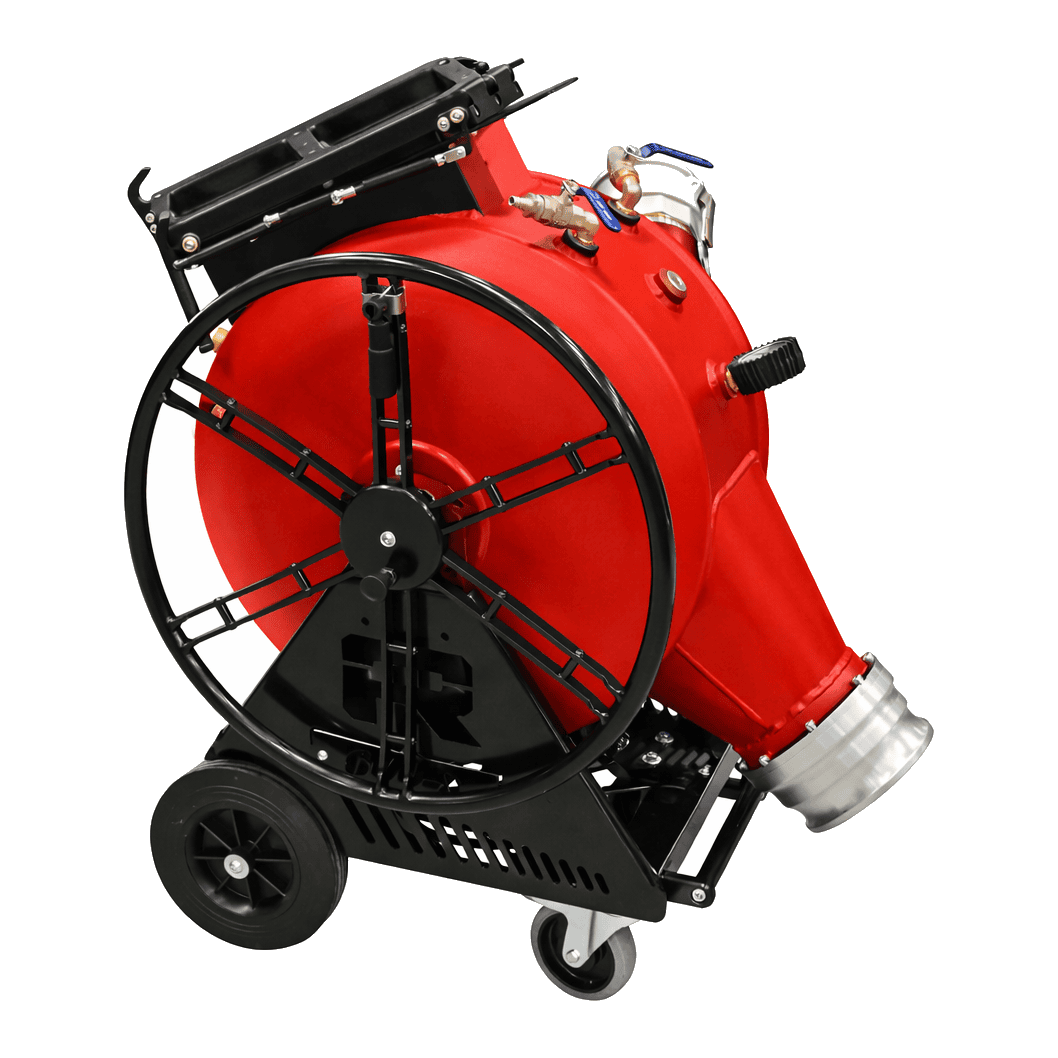

Red Inversion Drum Medium (RID-MED)
Trenchless Supply Inc · RID-MED-CL
Our most popular CIPP inversion drum, 109 lb, for 2"-8" liners.
2"–8" pipe
Deposit $1,500 · 1-day minimum

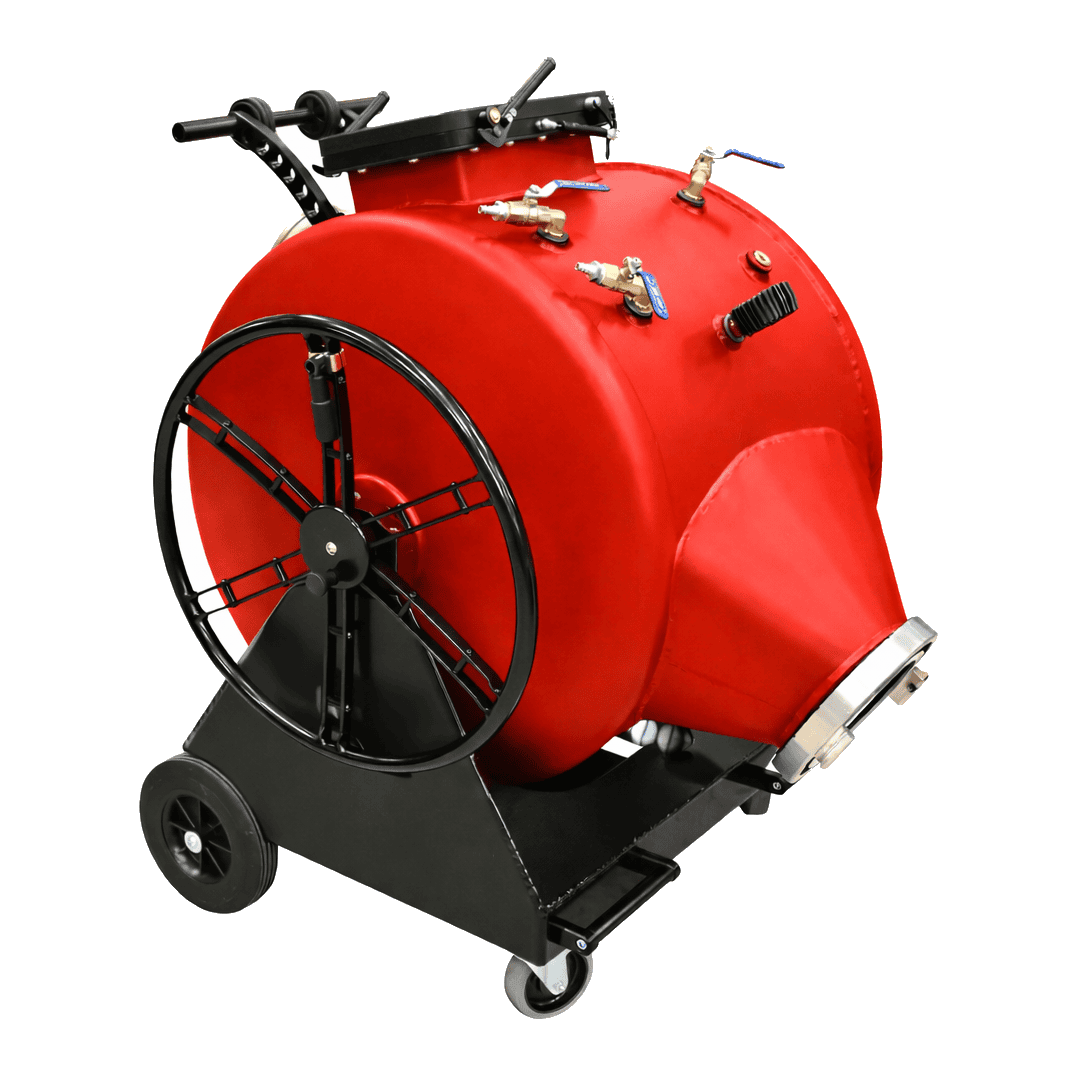

Red Inversion Drum XL (RID-XL)
