Red Inversion Drum Small (RID-SM)
Trenchless Supply Inc · RID-SM-CL
1 / 3Red Inversion Drum Small (RID-SM) rental unit
Lightweight 46 lb inversion drum for 2"-6" liners in tight-access installs.
Rent it on the job. Apply up to 90% of eligible equipment rental charges toward a new unit after your rental closes out.
The Red Inversion Drum Small has a compact design and is extremely lightweight, enabling lining where larger inversion drums cannot reach. This highly portable lining tool allows installations in attics, roofs, and other areas where it is challenging to move heavier installation equipment.
**Main features**
- **Stainless steel build** for long-term durability in demanding environments. - **Inspection window** to monitor liner inversion in real time. - **Pressure regulation valve** for smooth, controlled liner deployment. - **Ergonomic drum rotation system** for consistent, even inversion. - **Multiple nozzle sizes available** supporting 2" to 4" liners. - **Compatible with ambient, hot water, steam and UV curing.**
Specifications
- Manufacturer
- Trenchless Supply Inc
- Model
- RID-SM-CL
- Pipe range
- 2"–6"
- Working length
- 100 ft
- Dimensions
- 34 x 30 x 34 in
- Shipping weight
- 46 lb
- Inventory
- Serialized unit
- Minimum rental
- 1 day
- Deposit
- $1,000
- Nozzle
- Camlock or Storz 6"
- Weight
- 46 lb
- Material
- Aluminum, Stainless Steel
- Liner Range
- 2" - 6"
- Drum Capacity
- Approx. 82 ft of 4"
- Tank Pressure
- Max. 22 PSI
- Curing Methods
- Ambient, Steam, Hot Water, Ultraviolet (UV)
- Air Consumption
- Min. 8 CFM
What's included
- Drum with inspection window
- pressure regulation valve
- Camlock or 6" Storz nozzle
- hoses and fittings
Jobsite requirements
- Power
- Air powered
- Air
- Min. 8 CFM shop air; max tank pressure 22 PSI
- Training
- CIPP installation training required
Similar units

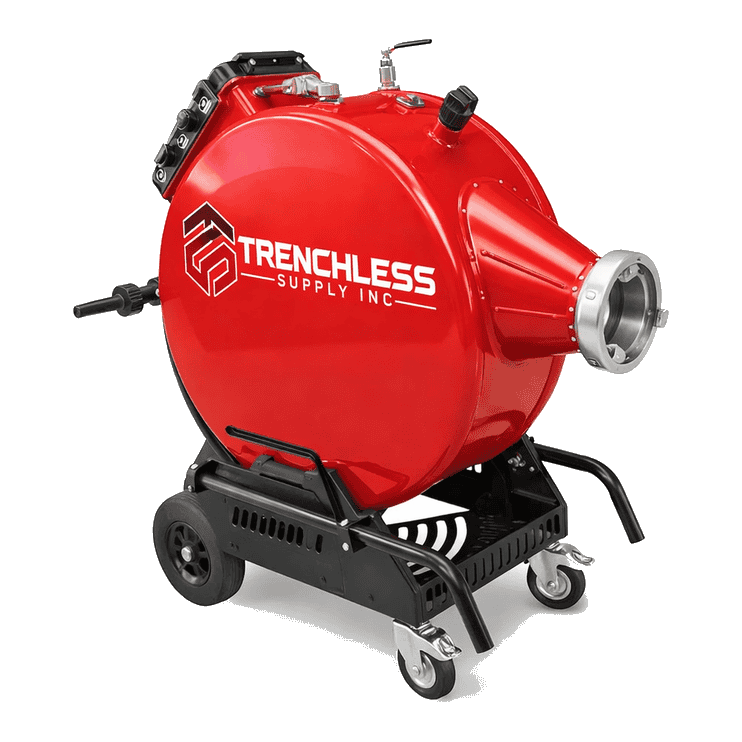

Red Inversion Drum Large (RID-LG)
Trenchless Supply Inc · RID-LG-CL
High-capacity 174 lb drum for long shots up to 330 ft of 4" liner.
2"–8" pipe
Sign in to view rates
2-day minimum

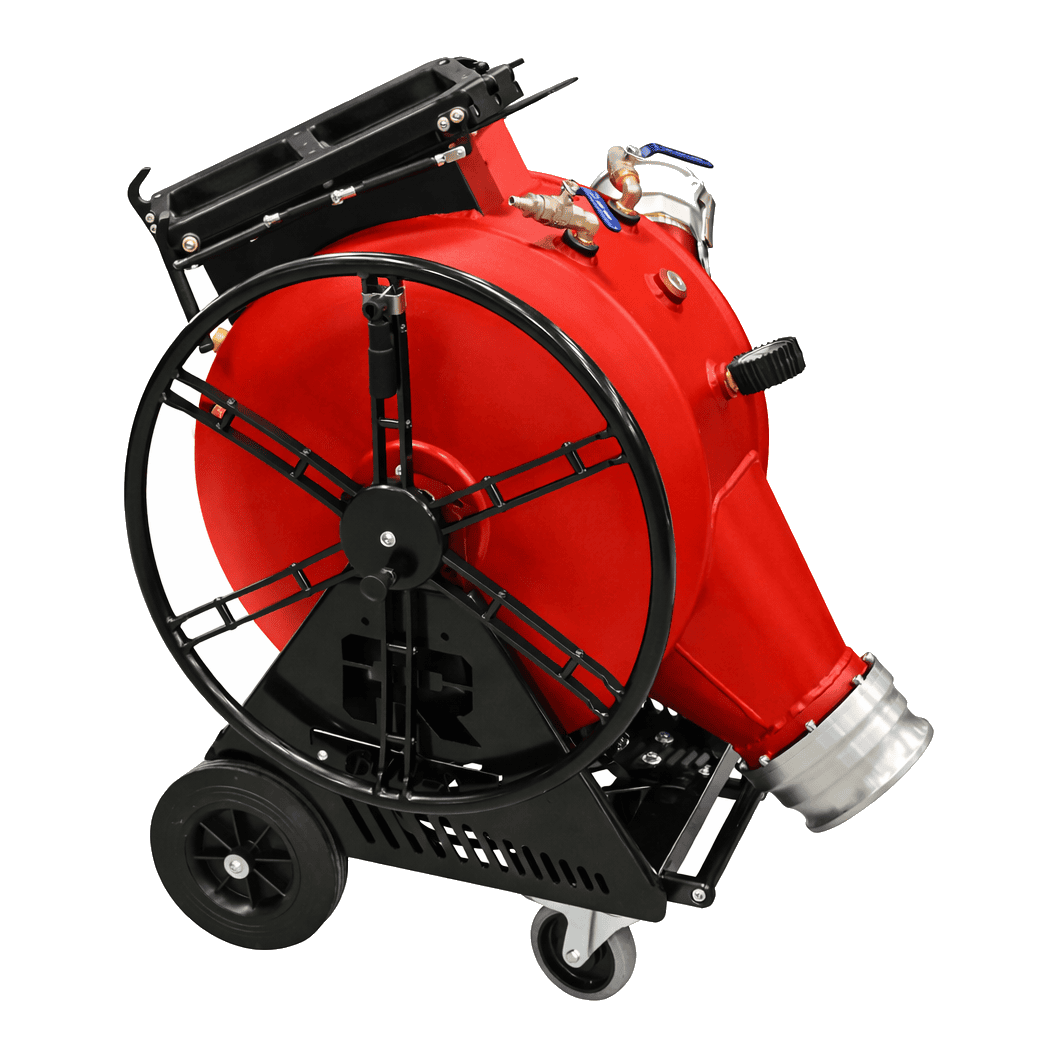

Red Inversion Drum Medium (RID-MED)
Trenchless Supply Inc · RID-MED-CL
Our most popular CIPP inversion drum, 109 lb, for 2"-8" liners.
2"–8" pipe
Deposit $1,500 · 1-day minimum

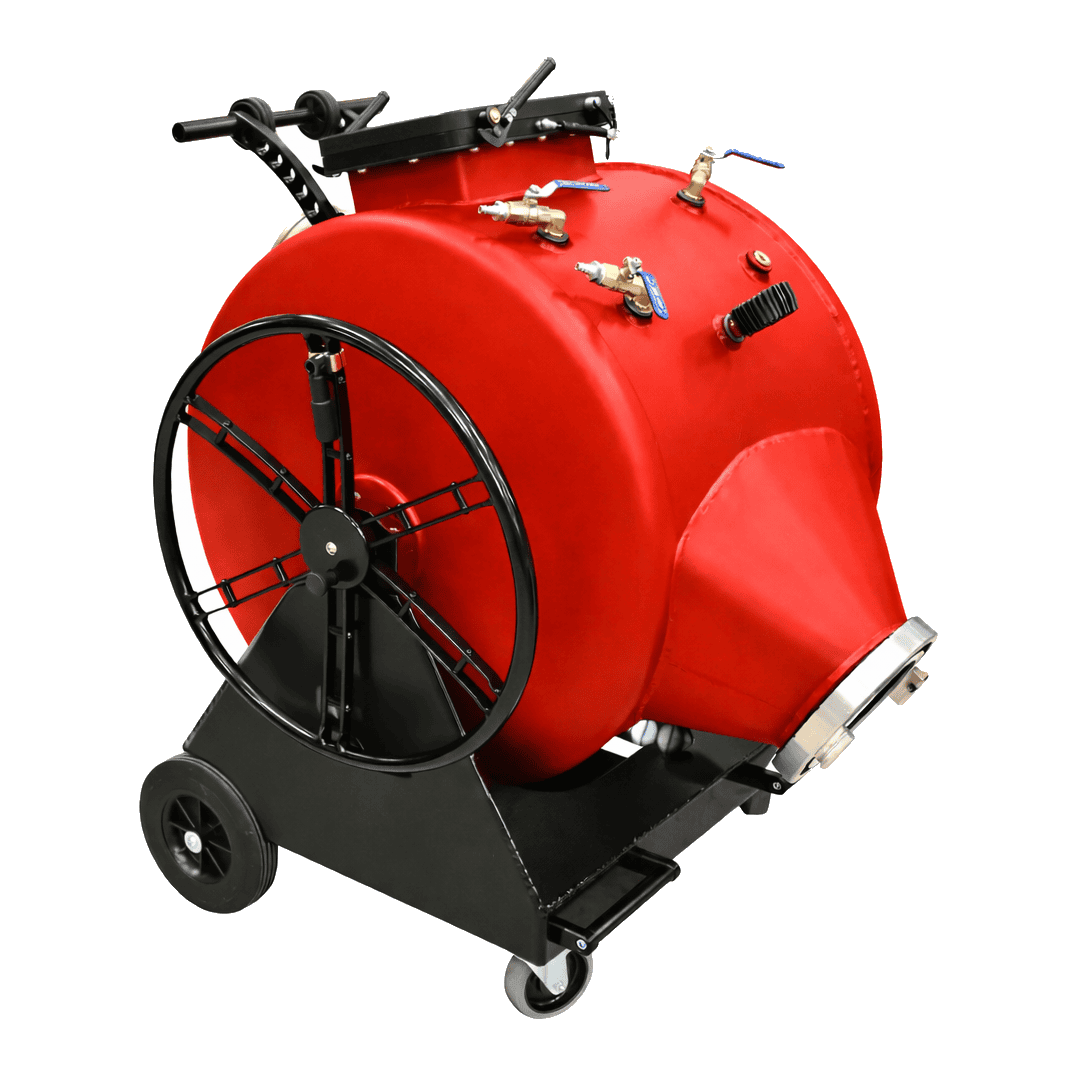

Red Inversion Drum XL (RID-XL)
