Red Inversion Drum Medium (RID-MED)
Trenchless Supply Inc · RID-MED-CL
1 / 2Red Inversion Drum Medium (RID-MED) rental unit
Our most popular CIPP inversion drum, 109 lb, for 2"-8" liners.
Rent it on the job. Apply up to 90% of eligible equipment rental charges toward a new unit after your rental closes out.
The **Red Inversion Drum Medium** is our most popular CIPP inversion drum, trusted by contractors for its performance, visibility, and jobsite maneuverability.
What sets this drum apart is its large viewing window, allowing operators to clearly monitor liner movement during inversion for better control and confidence on every install. The easy-locking window system provides a secure seal while allowing quick access when needed, saving valuable setup time on the job.
Designed with mobility in mind, this unit features a balanced frame and smooth-rolling wheels, making it extremely maneuverable in tight access areas, residential properties, and confined commercial sites.
**Main features**
- **Stainless steel build** for long-term durability. - **Inspection window** to monitor liner inversion in real time. - **Pressure regulation valve** for controlled liner deployment. - **Ergonomic drum rotation system** for even inversion. - **Multiple nozzle sizes available** supporting 2" to 8" liners. - **Compatible with ambient, hot water, steam and UV curing.**
Specifications
- Manufacturer
- Trenchless Supply Inc
- Model
- RID-MED-CL
- Pipe range
- 2"–8"
- Working length
- 200 ft
- Dimensions
- 44 x 38 x 40 in
- Shipping weight
- 109 lb
- Inventory
- Serialized unit
- Minimum rental
- 1 day
- Deposit
- $1,500
- Nozzle
- Camlock or Storz 6"
- Weight
- 109 lb
- Material
- Aluminum, Stainless Steel
- Liner Range
- 2" - 8"
- Drum Capacity
- Approx. 148 ft of 4"
- Tank Pressure
- Max. 22 PSI
- Curing Methods
- Ambient, Steam, Hot Water, Ultraviolet (UV)
- Air Consumption
- Min. 8 CFM
What's included
- Drum with inspection window
- pressure regulation valve
- Camlock or 6" Storz nozzle
- hoses and fittings
Jobsite requirements
- Power
- Air powered
- Air
- Min. 8 CFM shop air; max tank pressure 22 PSI
- Training
- CIPP installation training required
Purchase — not returned
Consumables & wear parts
Add cartridges, spearheads and field supplies to your reservation. These ship or go out with the machine and are billed as a purchase — there is nothing to bring back at return.
Liner Prep Tape 2 in
LNR-TAPE-2IN · $24 per roll
High-tack liner preparation tape, 2 in x 60 yd roll.
—Nitrile Resin Gloves (50 pk)
CON-GLOVE-NBR · $32 per box of 50
Chemical-resistant nitrile gloves for resin handling.
—
Similar units

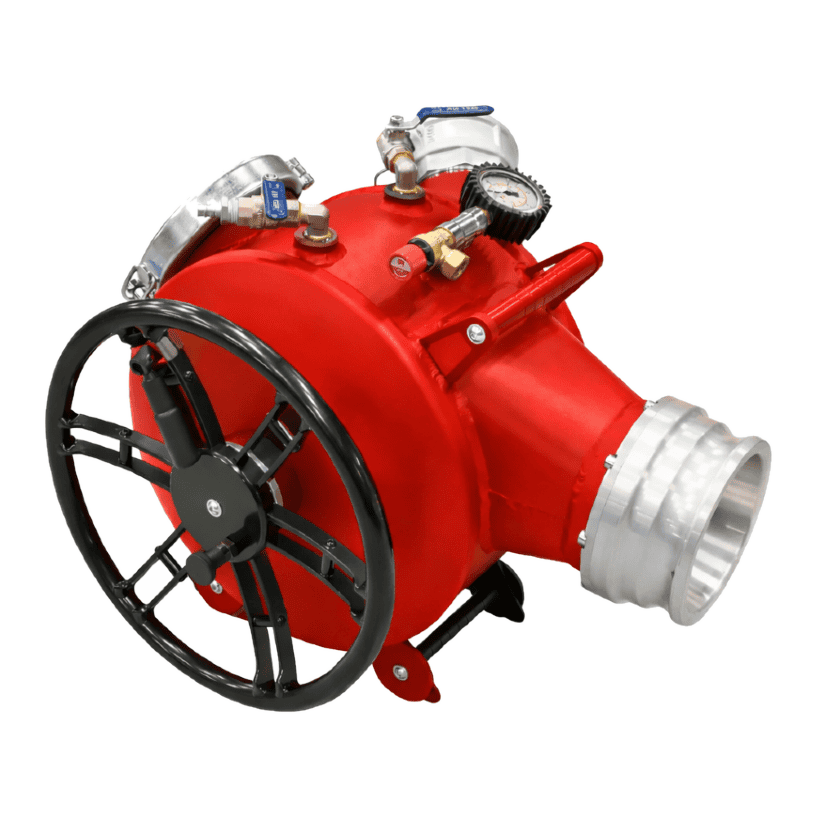

Red Inversion Drum Small (RID-SM)
Trenchless Supply Inc · RID-SM-CL
Lightweight 46 lb inversion drum for 2"-6" liners in tight-access installs.
2"–6" pipe
Deposit $1,000 · 1-day minimum

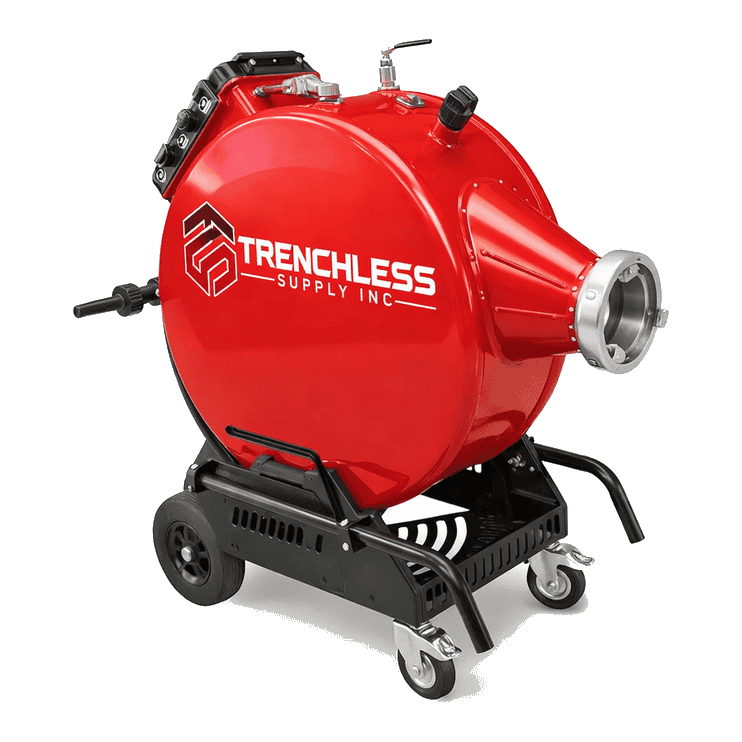

Red Inversion Drum Large (RID-LG)
Trenchless Supply Inc · RID-LG-CL
High-capacity 174 lb drum for long shots up to 330 ft of 4" liner.
2"–8" pipe
Sign in to view rates
2-day minimum

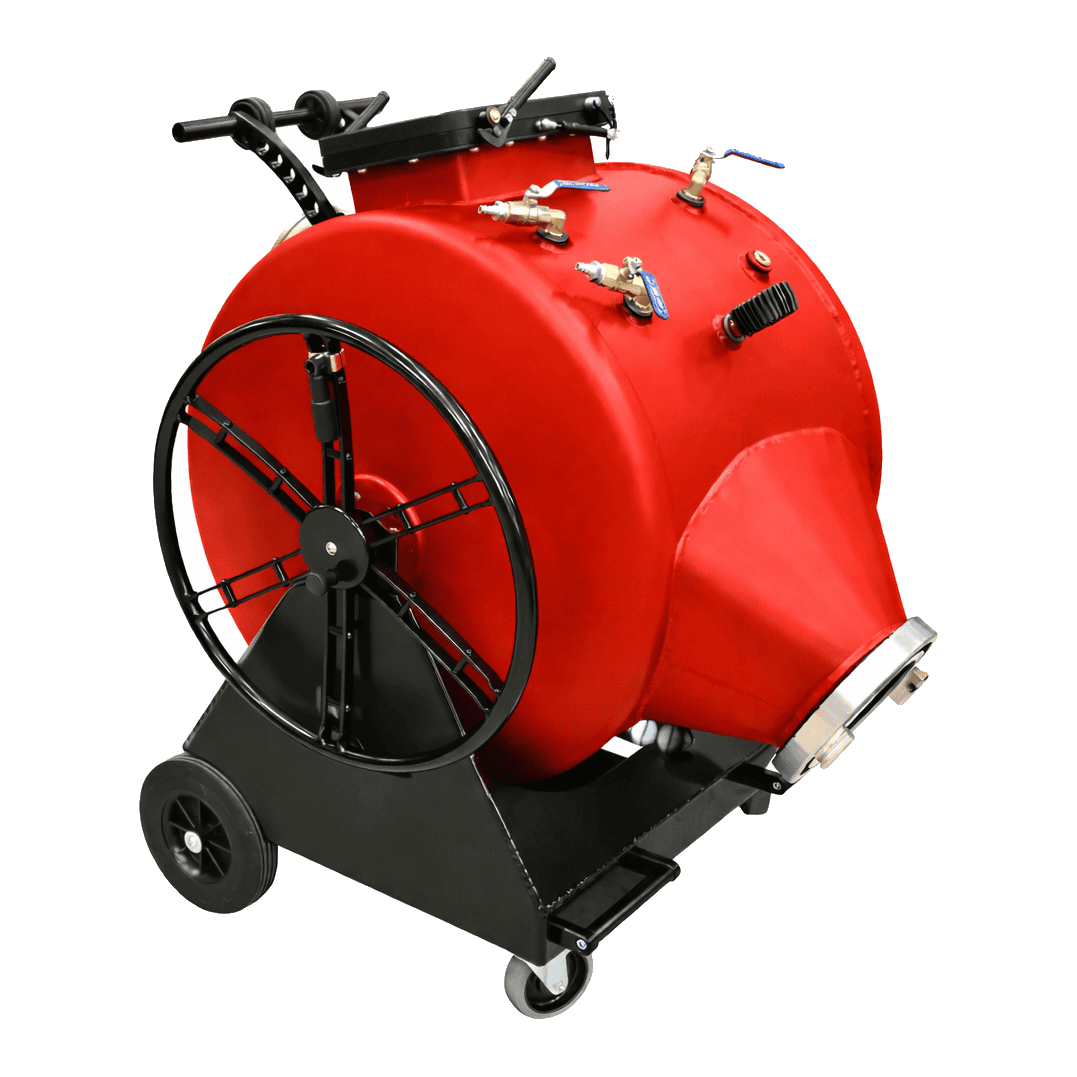

Red Inversion Drum XL (RID-XL)
