Red Inversion Drum XL (RID-XL)
Trenchless Supply Inc · RID-XL-CL
1 / 2Red Inversion Drum XL (RID-XL) rental unit
Our largest inversion drum, 205 lb, for 2"-10" liners and long runs.
Rent it on the job. Apply up to 90% of eligible equipment rental charges toward a new unit after your rental closes out.
The **Red Inversion Drum Extra Large** is the largest and highest-capacity inversion system in our lineup, engineered for major commercial, industrial, and municipal CIPP rehabilitation projects. Built for maximum liner capacity and extended inversion runs, it is the ideal solution for contractors handling large diameter liners and long-distance installations.
The XL delivers powerful, consistent air inversion control while maintaining the simplicity and ease of operation found throughout our drum collection. Its oversized inspection window lets operators clearly monitor liner movement during inversion, and the secure, easy-locking window system provides a tight seal under pressure with fast access when needed.
**Main features**
- **Stainless steel build** for long-term durability. - **Oversized inspection window** to monitor liner inversion in real time. - **Pressure regulation valve** for controlled liner deployment. - **Ergonomic drum rotation system** for even inversion. - **Multiple nozzle sizes available** supporting 2" to 10" liners. - **Compatible with ambient, hot water, steam and UV curing.**
Specifications
- Manufacturer
- Trenchless Supply Inc
- Model
- RID-XL-CL
- Pipe range
- 2"–10"
- Dimensions
- 66 x 48 x 50 in
- Shipping weight
- 205 lb
- Inventory
- Serialized unit
- Minimum rental
- 1 day
- Deposit
- Sign in to view
- Nozzle
- Camlock or Storz 8"
- Weight
- 205 lb
- Material
- Aluminum, Stainless Steel
- Liner Range
- 2" - 10"
- Drum Capacity
- Approx. 100 ft of 8"
- Tank Pressure
- Max. 22 PSI
- Curing Methods
- Ambient, Steam, Hot Water, Ultraviolet (UV)
- Air Consumption
- Min. 8 CFM
What's included
- Drum with oversized inspection window
- pressure regulation valve
- Camlock or 8" Storz nozzle
- hoses and fittings
Jobsite requirements
- Air
- Min. 8 CFM shop air; max tank pressure 22 PSI
- Training
- Certified CIPP training required
Similar units

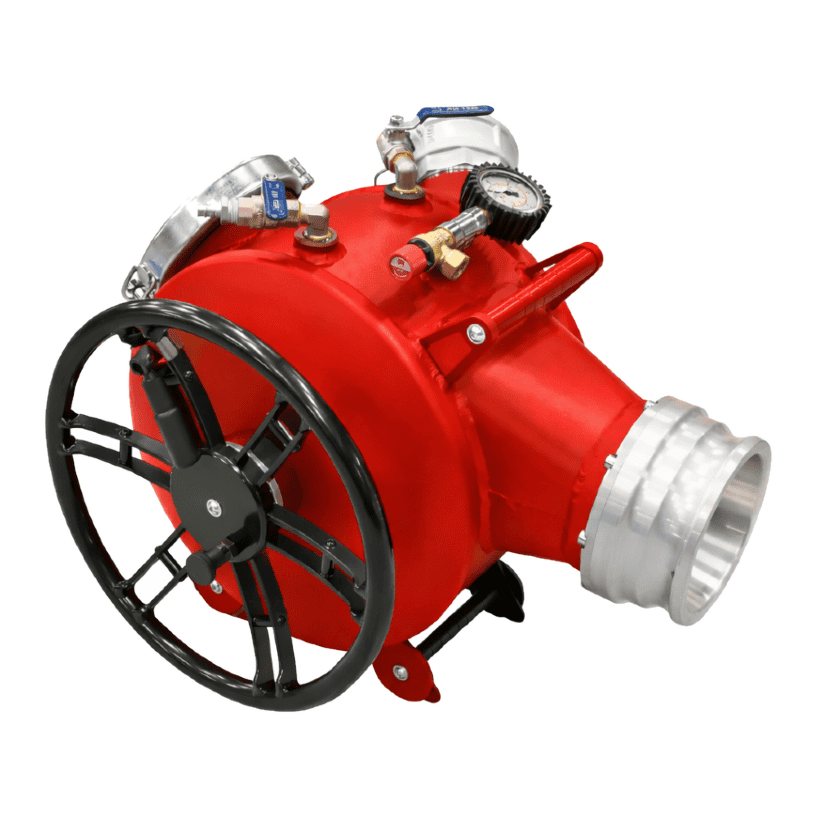

Red Inversion Drum Small (RID-SM)
Trenchless Supply Inc · RID-SM-CL
Lightweight 46 lb inversion drum for 2"-6" liners in tight-access installs.
2"–6" pipe
Deposit $1,000 · 1-day minimum

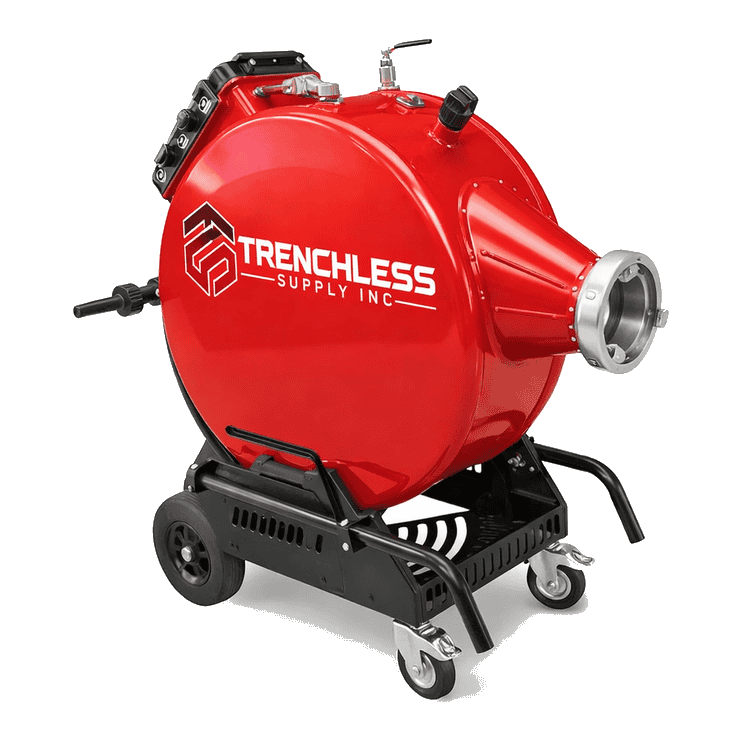

Red Inversion Drum Large (RID-LG)
Trenchless Supply Inc · RID-LG-CL
High-capacity 174 lb drum for long shots up to 330 ft of 4" liner.
2"–8" pipe
Sign in to view rates
2-day minimum

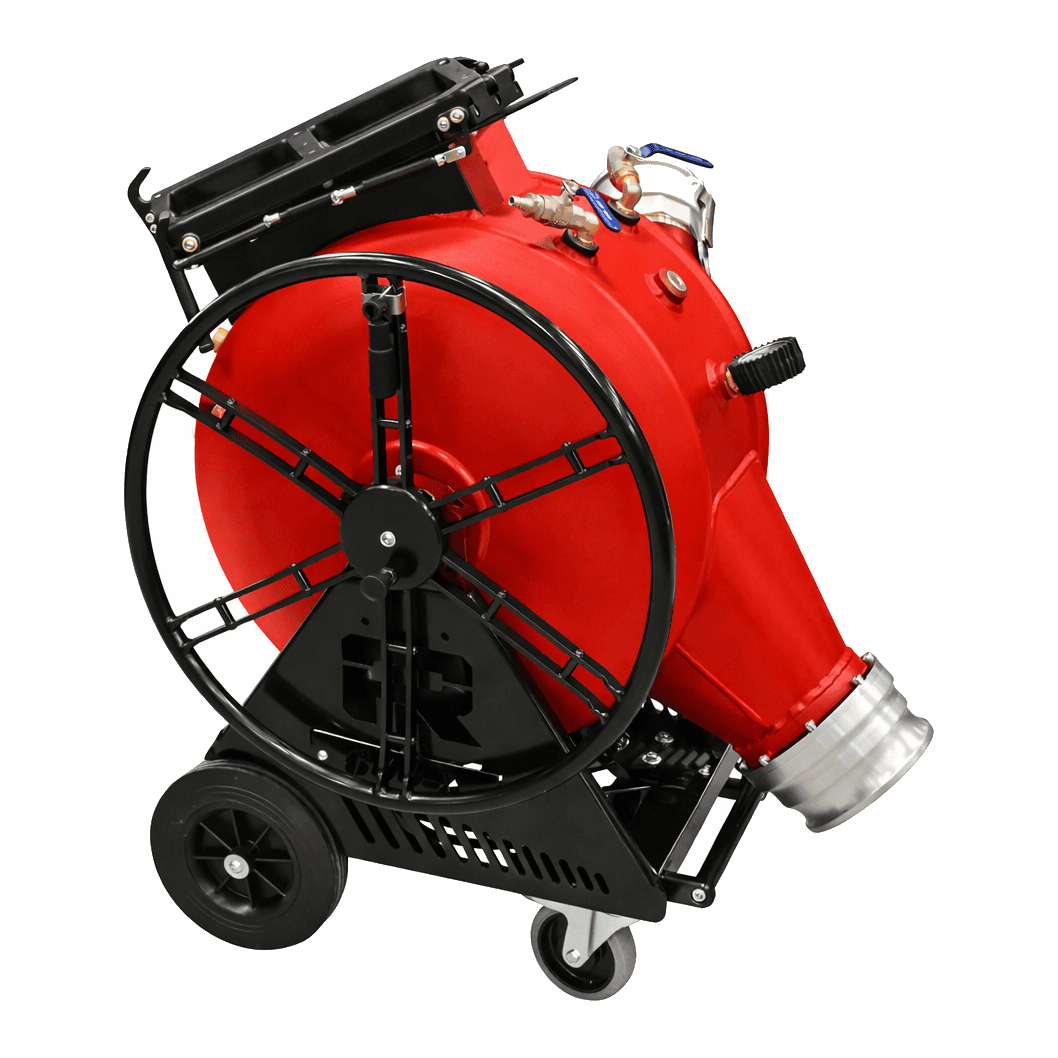

Red Inversion Drum Medium (RID-MED)
